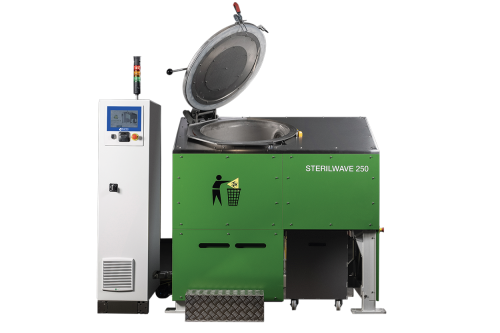

    Sterilwave 250

    With a waste treatment capacity of 50 kg per hour, the Sterilwave 250 allows medium-sized institutions to treat their biomedical waste, guaranteeing safety and traceability at greatly reduced operating costs.

    The Sterilwave 250 was approved by the French Ministry of Health in 2014 and complies with the strictest environmental and bacteriological reduction standards. It allows institutions to treat up to 500L of biomedical waste per hour (50kg/hr*) in complete safety.

    Its innovative concept uses rotating grinder blades to grind down all types of waste, including metallic objects. Biohzardous waste is sterilised using microwaves and converted into inert municipal waste, reducing its volume by more than 80% and its weight by 25%. Its environmental impact and operating costs are reduced while ensuring the safety of the operator. As it uses microwave technology, Sterilwave does not need a steam generator, so there is no risk from excess pressure and no liquid effluent is produced. Its compact size means waste can be treated immediately where it is produced. Its installation requires only 12m² of space and no additional infrastructure.
    (* with a density of 0.1kg/L)

    Reasons to choose Sterilwave 250

    Effective

    Bacterial inactivation higher than international regulatory standards (up to 8log10)

    Plus & Play

    Ready-to-use system which requires no specific technical qualifications

    Environmentally-friendly

    No environmental impact – On-site treatment – No transportation – No liquid effluent

    Safe

    Technology combining shredding & microwave sterilization in one single vessel – No pressurisation unlike in an autoclave

    Economical

    Robust equipment – Quick return on investment – No more storage, easy to maintain – Most competitive operating cost on the market.

    Waste capacity

    500L/h
    Up to 50kg/h*
    *with a waste density of 1L=0.1kg

    Vessel capacity

    250L

    Average cycle time

    30’

    Dimensions ( L x W x D )

    1,6 x 1,1 x 1,5 m

    Weight

    1200 kg

    Recommended working area

    15 sq.m (full workflow area)
    Ceiling height: 2.2 m

    Electricity

    400V/ 3-Phase, 63A

    Technology

    Grinding by rotating blades and heating by microwaves

    Microbial inactivation

    Spore up to 8log10
    Virus up to 6log10
    STAATT requirements and NFX30-503 compliant

    Volume reduction

    Up to 85%

    Weight reduction

    Up to 25%

    Final Waste

    Unrecognizable, inert, dry, stable

    Loading Process

    Manual or Automatic (option)

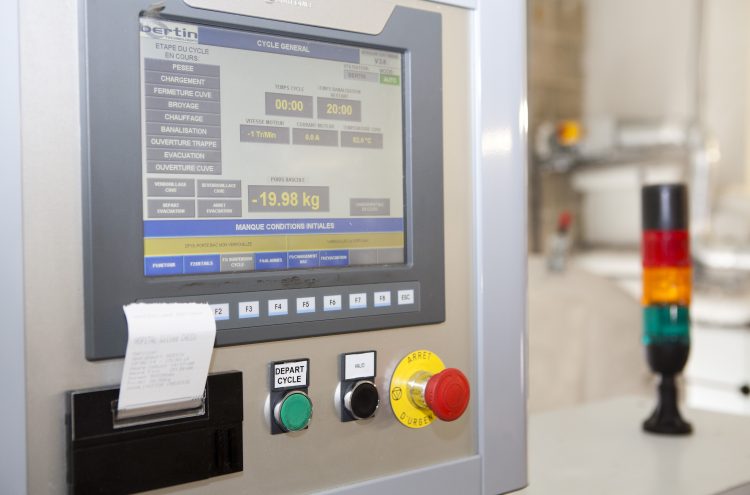

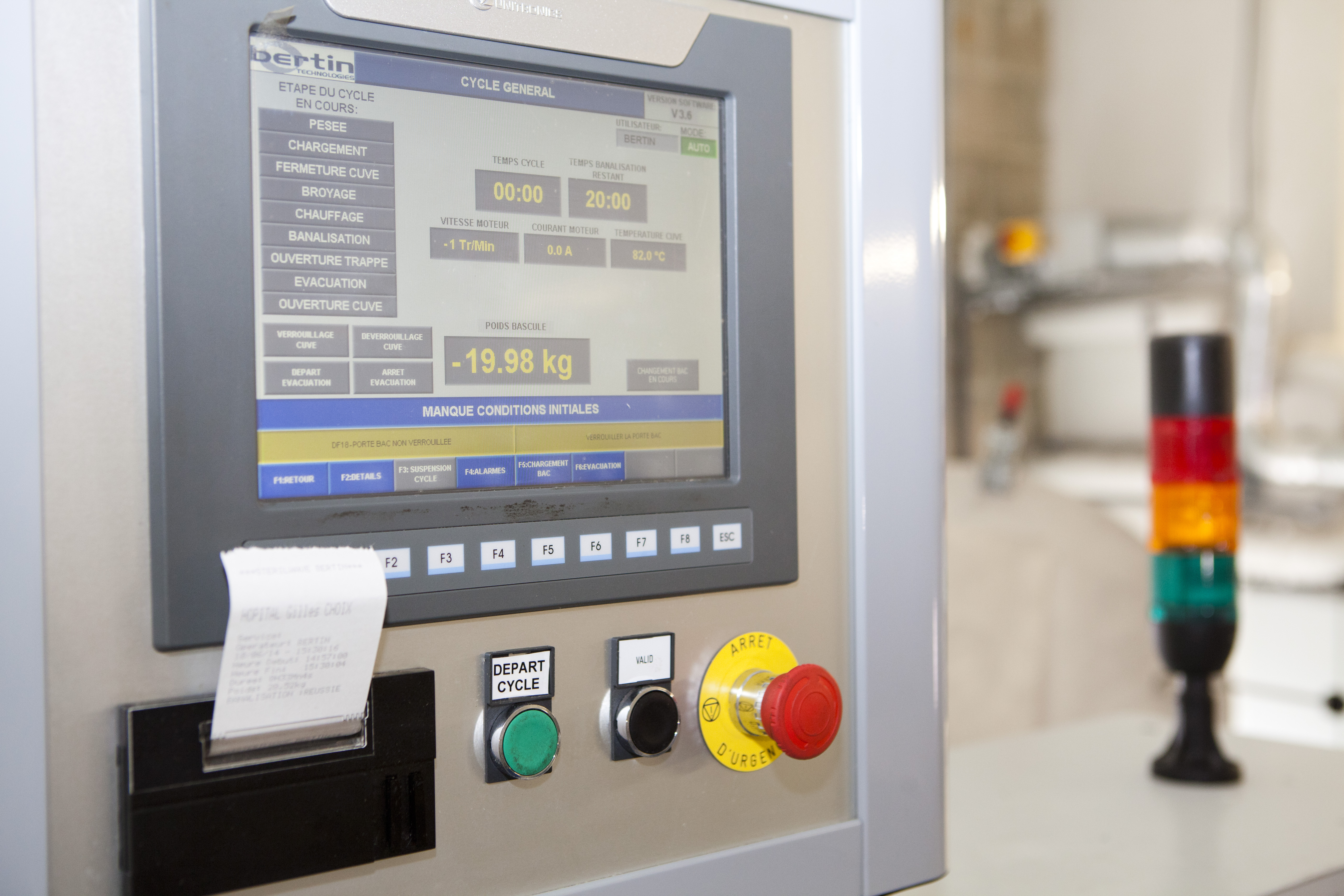

    Process management

    Full traceability

    Full decontamination

    Biohazardous waste is sterilised with microwaves (heat it up to 110°C for 20 minutes) and allows microbial inactivation of up to 8log10

    Safe processing

    Microwave sterilisation technology does not require pressurisation, and this removes any risk of explosion. Moreover, the microwaves are confined to the inside of the vessel to avoid operator exposure to radiation

    No liquid effluent

    The treatment process does not produce any steam or liquid effluent, which means no consumption of water and no need to include an effluent drainage system in its installation

    No segregation

    The Sterilwave is suitable for all types of biomedical waste (needles, glass, solids, liquids, etc.)

    Easy maintenance

    The equipment is built using robust technology. IP connection for diagnostics. Preventive maintenance plan/calendar with alarm

    Reduces weight by 25% and volume by 85%

    Biomedical waste is converted to inert waste similar to municipal waste. The dry ground-up waste can also be used as secondary fuel

    With its automated grinding and microwave sterilisation process contained in a single vessel, the Sterilwave can produce bacterial inactivation (higher than 8log10) of biomedical waste in less than 30 minutes, in complete safety and without intermediate handling. Unlike autoclave technologies, our system does not require the vessel to be pressurised. The Sterilwave converts biomedical waste into dry waste which is inert and completely disinfected, reducing its weight by more than 25% and its volume by 85%. The end product is similar to municipal waste and can then be fed into standard urban waste systems.
